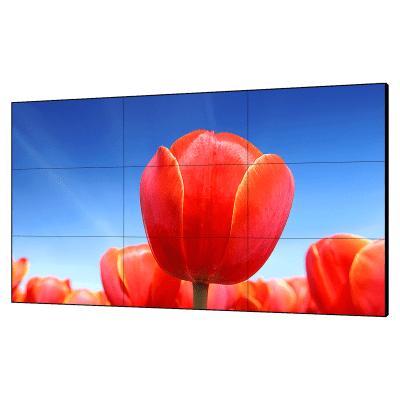

Dahua DHL550UCM-ES 55″ LCD Video Wall Panel Screen


55’’ FHD Video Wall Display Unit (Ultra Narrow Bezel 3.5mm)

Brand: DAHUA

Model: DHL550UCM-ES


> Industrial level PVA LCD panel, suitable for extensive 24/7 continuous works

> Ultra-narrow 3.5mm bezel-to bezel design(2.3mm bezel on the left and top sides and 1.2mm bezel on the right and bottom sides)

> High contrast ratio and high brightness greatly enhance the video layering, and present the details of the video

> High fidelity digital processing for a brilliant and vivid video

> Built-in 3D COMB filter and 3D noise reduction

> Wide array of connectivity options HDMI, DVI, VGA, BNC, RS232, USB

> Infrared, RS232 dual mode, supporting remote PC control

> Professional thermal design to extend equipment lifespan

> Built-in power, low energy consumption, ultra-quiet

> Fast stack installation, professional project design, supporting arc-shaped mounting

> Widely used in surveillance center, dispatching platform, safe city, commercial display, etc.

Model DHL550UCM-ES
Screen Size 55″(16:9)
LCD Technology PVA
Resolution 1920×1080 (FHD)
Bezel width 2.3mm(U/L), 1.2mm(R/B)
Backlight Direct LED
Brightness/Luminance 500 cd/
Contrast Ratio 4000:1
Viewing Angle H178°, V178°
Response time 8ms
Display Color 8bit(16.7M)
Color Temperature 10,000K
MTBF 50,000h
Input CVBS(BNC)×2, VGA(D-Sub)×1, DVI-D×1, HDMI×1, RS232×1, USB×1, IR×1
Output CVBS(BNC)×2, RS232×1
Consumption (Standard) 130W
Consumption (Standby) ≤0.5W
Power Supply AC100VAC240V, 50/60 Hz
Installation Mode Floor-standing, wall-mounted
Control Mode Infrared, RS232 dual mode, supporting remote PC control
Net Weight 37kg(81.4Ib)
Gross Weight 30kg(66Ib)
Dimension (W×H×D) 1213.5mm×684.4mm×121.1mm(47.8″×26.9″×4.8″)
Package (W×H×D) 1324mm×936mm×244mm(52.1″×36.9″×9.6″)
Work Environment Temperature 0~+50
Humidity 20%RH~90%RH
