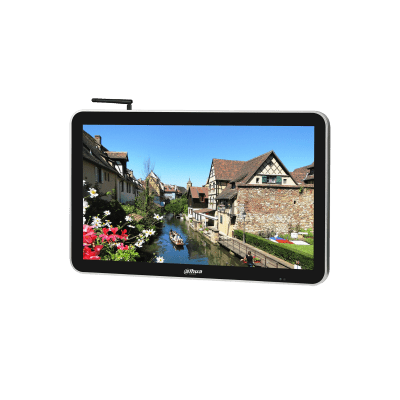

Dahua LDH22-SAI200 22″ Indoor Digital Signage


22” Wall-mounted Digital Signage

Brand: DAHUA

Model: LDH32-SAI200

>High quality panel, industrial-grade design, full metal casing, 5mm tempered protective glass.
>Supports picture, audio, video, PDF, IPC stream, time, weather, etc.
>MPS platform provides unified remote management for system integrators and media operators.
>Strong 4 core processor provides powerful decoding capabilities, enabling premium display performance.

>Multiple installation modes satisfy a broad range of project requirements.

Model LDH22-SAI200
Screen Size 22”
Aspect Ratio 16:9
Resolution 1920×1080
Display Colors 16.7M (8 bits)
Brightness 250nits
Contrast Ratio 3000:1
Viewing Angle(H×V) 178°/178°
Display Mode Landscape/Portrait
Response Time 18ms
Lifespan 30,000h
Input RJ45×1, USB2.0×2, SD×1, HDMI(customized)
Output N/A
External Control RS232
Wi-Fi Yes
Speaker 2W×2
Smart Signage Platform Media Publish System
Power & Environmental Conditions
Power Supply AC100-240V (+/- 10%), 50/60Hz
Type Internal
Consumption(Typical) 18W
Consumption(Standby) Less than 0.5W
Operating Temperature -10℃~+55℃ (14℉~131℉)
Operating Humidity 10%~90%
Mechanical Specification
Dimensions 533.0×354×45.5mm (21″×13.9″×1.8″)
Package 660×431×188mm (26″×17″×7.4″)
Bezel Width 29.95mm(U/B), 27.4mm(L/R)
Net Weight 7kg (15.4lb)
Gross Weight 8kg (17.6lb)
Included in Box Power cord, wall-mounted bracket, user manual, remote control
Wall Mount 242×222mm (9.5″×8.7″)
Optional Wall Mount Kit N/A
Internal Player
Processor Cortex-A7 1.5GHz Quad Core CPU
RAM 1GB(2G customized)
Storage 8GB(16G customized)
Material Type Audio, video, image, time, weather, countdown, txt, web page, stream media, pdf
Audio/Video Encoding Format Mp4, avi, mov, asf, wmv, rm, rmvb, mkv, jpg, jpeg, gif, bmp, png, mp3, wma, wav
Operating System Android 4.4 (Android 5.1 customized)
Decoding Capacity 1ch@4K or 3ch@1080P
